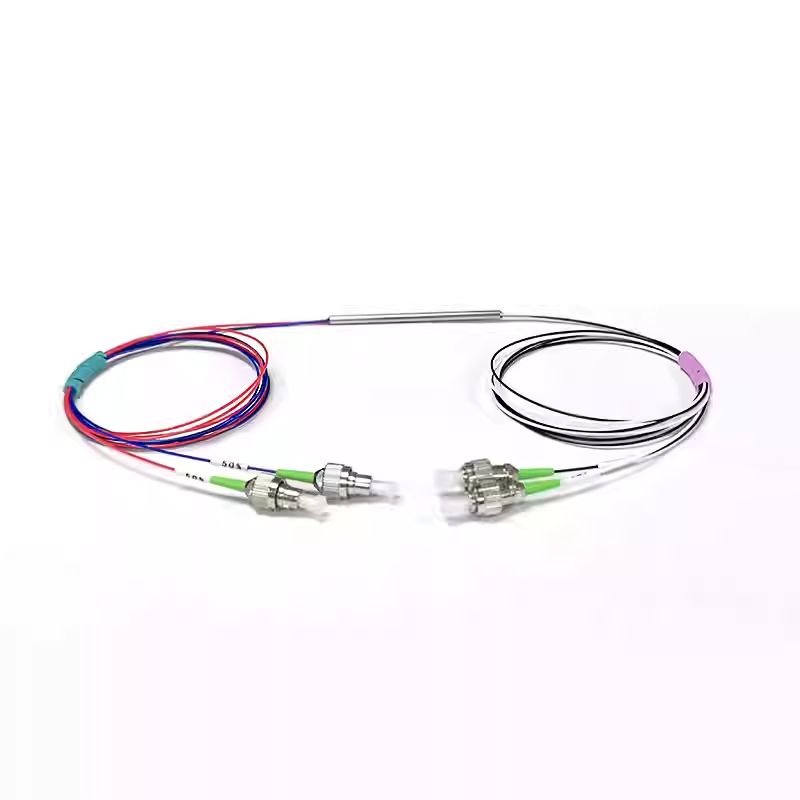

1950nm 2000nm 2x2 Fiber Coupler Single-Mode Tapered Optical Beam Splitter

1950nm 2000nm 2×2 Fiber Coupler Single-Mode Tapered Optical Beam Splitter Fused tapered single-mode fiber optic couplers (FBTCouplers) enable optical signals transmitted in optical fibers to couple in a specially structured coupling region, redistributing optical power. Couplers with various wavelengths and splitting ratios within the 400-2050nm range can be manufactured. FBTCouplers are widely used in optical fiber communication, underwater laser communication, fiber lasers, fiber amplifiers, and other fields. [Features] Low excess loss Low insertion loss High extinction ratio High stability and reliability [Application] Fiber lasers Fiber amplifiers Fiber sensing Fiber communication/instrumentation Parameters Unit Value Port Type 2×2 Working Wavelength nm 1950/2000 (Choose) Bandwidth nm ±20 Split Ratio 50/50 (Customizable) Max. Insertion Loss dB 3.6 Polarization-dependent loss dB ≤0.1 Return Loss dB 55 Fiber Type SMF-28e/SM1950 Power W  0.5~10(Customizable) Fiber Connector  FC/APC, FC/UPC, LC/APC, LC/UPC,SC/APC,SC/UPC  (Choose) Fiber Length m 1m (Customized) Package Dimensions mm Φ3.0×54 Operating Temperature ℃ -40~ 85 Storage Temperature ℃ -40~ 85 Temperature measurement environment is 25°C; the above data does not include connectors. If connectors are added, the insertion loss will vary depending on the wavelength. Please contact us for confirmation. Return loss will be reduced by 5dB. SKU: N/A Categories: Fiber Coupler, PM Fiber Coupler Tags: 1950nm fiber coupler, 2000nm fiber coupler
