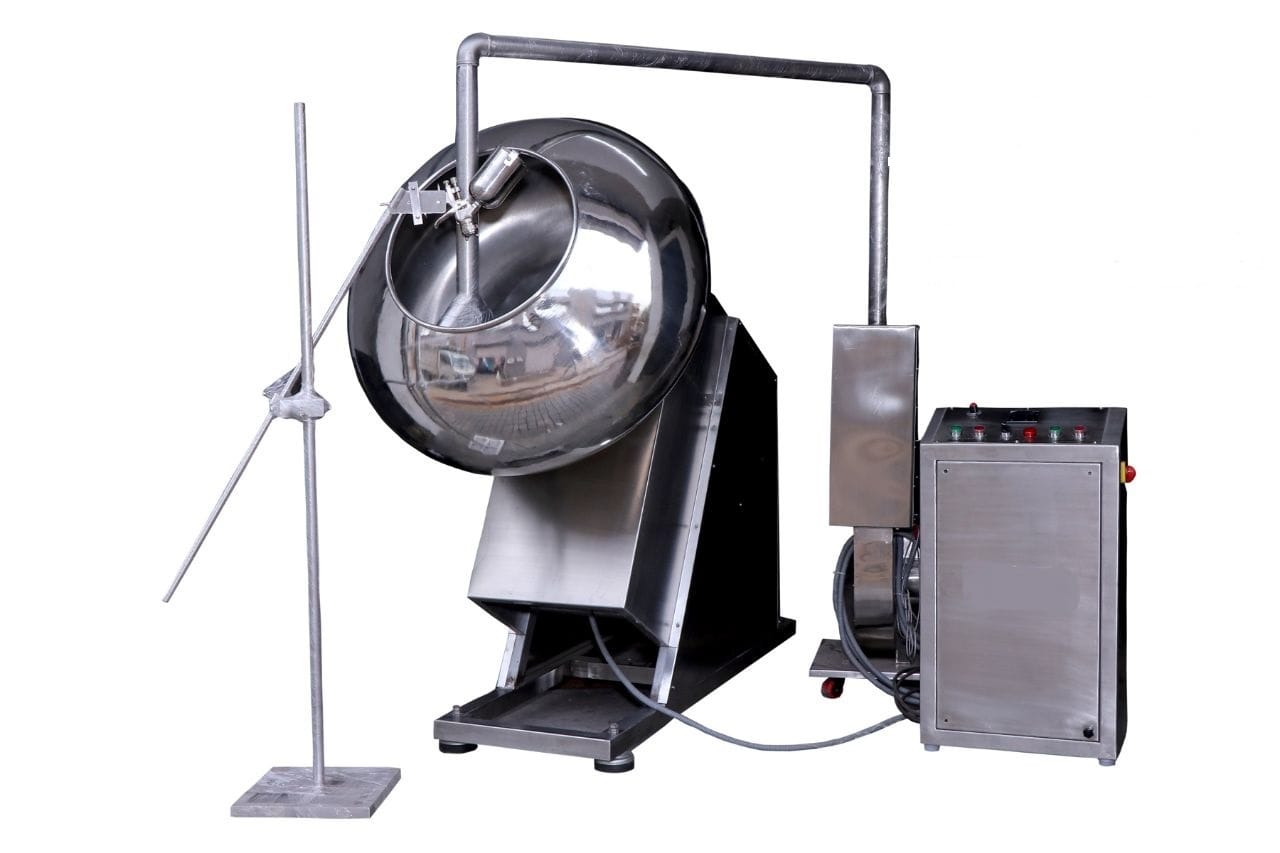

Coating Pan or Flavoring Machine

Coating Pan or Flavoring MachineUse – Coating Machine Are Used To Sugar Coat Tablets, Pills. A Variety Of Industries Such As Pharmaceutical, Confectionery, Food And Others. Rolling And Heating Beans And Edible Nuts Or Seeds.Application – Coating or flavoringProcess – The Product Is To Be Filled Inside The Pan. During The Rotation Motion, Coating Material Is Sprayed By Spraying System According To The Technological Process & Rational Technological Process. So Process Materials (Product) Are Coated Due To Rotating Pan. The Coating Round Pot Is Rotated By Variable Speed. At The Same Time Hot Air Is Supplied Through Inbuilt Hot Air Blower System Which Dries Rapidly (Heating Or Cooling) And Evenly Thus Forming A Solid & Smooth Surface.Material Of Construction – 1) GMP. Model (Full Stainless Steel), 2) STD. Model (Product Contact Parts Stainless Steel & Non Contact Parts Mild Steel Painted) 3) M.S.Model ( Fully Mild Steel) (As per Customer Required)MODELSFFE- 12SFFE- 24SFFE- 30SFFE- 36SFFE- 42SFFE- 48SFFE- 60SFFE- 72PAN SIZE12 INCH24 INCH30 INCH36 INCH42 INCH48 INCH60 INCH72 INCHLOADING CAPACITY IN KG.5 TO 810 TO 1540 TO 4560 TO 8090 TO 100110 TO 120150 TO 210210 TO 250PAN ANGLE﮿30﮿30﮿30﮿30﮿30﮿30﮿30﮿30PAN RPM6040363636362020PAN MOTOR HP0.511.523555BLOWER CAPACITY CFM100100150150150150300300HEATER CAPACITY IN KW.23335566
